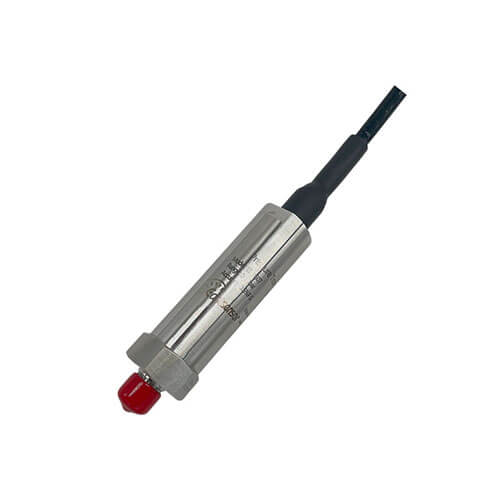

EST3607 CANbus Pressure Transducer
EST3607 is kind of CANbus Pressure Transducer which features high reliability, stability and accuracy. The product is widely used for the measurements of gas and liquid, such as water and oil.
With built-in CAN fieldbus controller and transceiver, EST3607 enables CANBUS-based two-way communication. The longest communication distance is up to 10km, and the communication rate is up to 1Mbps.
EST3607 CANbus Pressure Transducer has a built-in CAN2.0 field bus controller and transceiver, allowing for bidirectional communication based on CANBUS. The CAN bus is a multi-master network protocol where any node on the network can send messages to other nodes at any time.
By arbitrating message priorities, it greatly reduces transmission delays and avoids conflicts. CAN’s direct communication distance can reach up to 10km.
EST3607 CANbus Pressure Transducer supports the DS301 version of the CANOPEN protocol and can connect with masters and other nodes that comply with the DS301 version of the CANOPEN protocol, supporting up to 127 nodes for communication.
Features & Benefits
- Pressure type: Gauge/Seal gauge
- Output: CAN fieldbus
- Range: 0~2MPa…100MPa
- Accuracy: ±0.25%F.S
- Operating temperature: -40℃~85℃
- Communication distance: 10Km
- Communication rate: 1Mbps.
Applications
- Aviation
- Aerospace
- Ships
- Ground vehicles
- Oil& Chemicals
EST3607 Technical Data & Performance
| Range | 0...0.07; 0...1000bar | |
| Output Signal | CAN 2.0/DS301 V-CANOPEN | |
| Power Supply(U+) | (5±0.25) VDC | 10VDC～30VDC |
| Current @ zero | ≤ 30mA | ≤ 30mA |
| Over-voltage | 12VDC | 30VDC |
| Inverse Voltage | 12VDC | -30VDC |
| Accuracy | ±0.5%F.S, ±0.25% | |
| Temperature Compensation | 0℃～50℃ | |
| Working Temperature | -30℃～80℃, -10℃～70℃(Cable connection) | |
| Medium Temperature | -30～120℃ | |
| Stock Temperature | -40℃～85℃, -20℃～85℃（Cable Connection） | |
| Stability | ±0.25％FS/year | |
| Response Time | (10%～90%)≤10ms | |
| Overload | ≥150%F.S | |
| Burst Pressure | ≥200%F.S, maximum 1000bar | |
| Process Connection | G1/4，7/16-20UNF-2B，7/16-20UNF-2A，NPT1/4，G1/2 | |
| Electrical Connection | DIN43650-B，M12 ×1，Water-proof Cable | |
| O-Ring | NBR(default)，FKM | |
| MOC of Housing | SS304 | SS316 | |
| Insulation Resistance | ≥100MΩ@100VDC | |
| Vibration | 10g，5~2000Hz | |
| Shock | 20g，11ms Half Sine | |
| Ingress Protection | ≥IP65 | |
